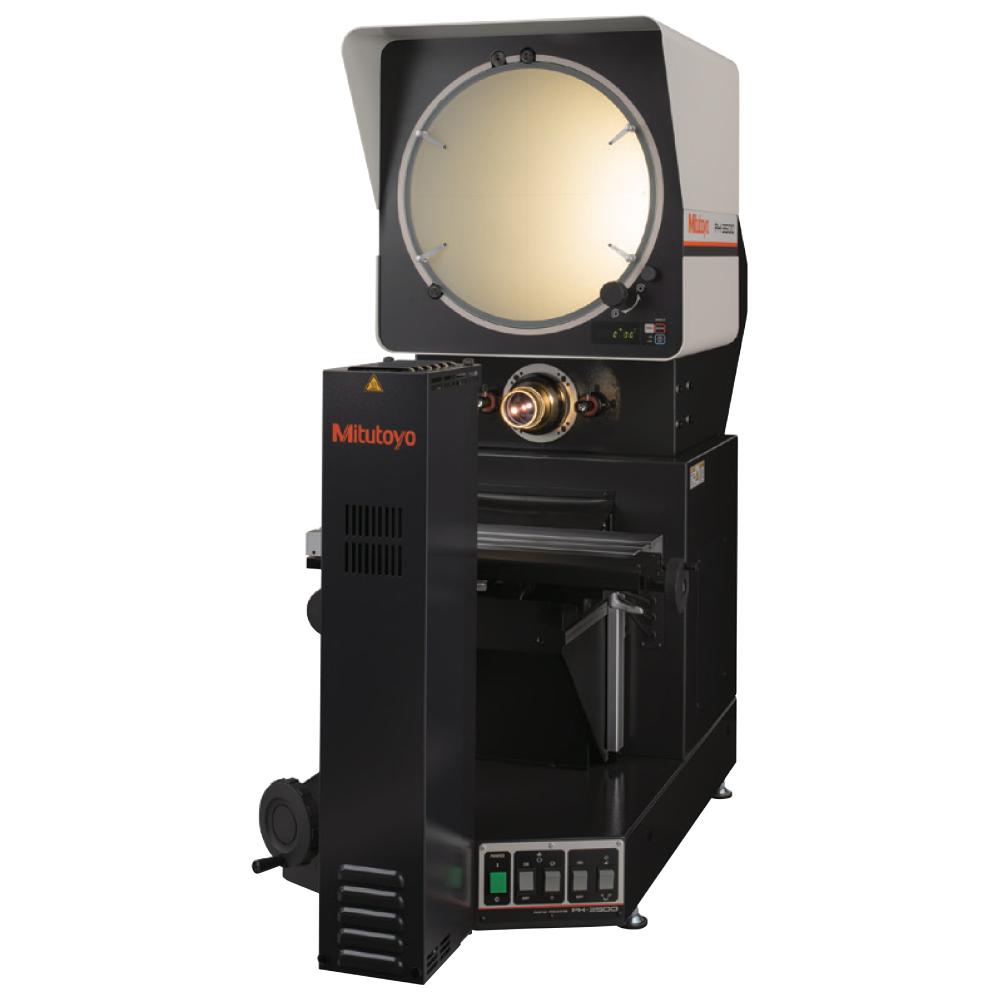

 PH-3515F

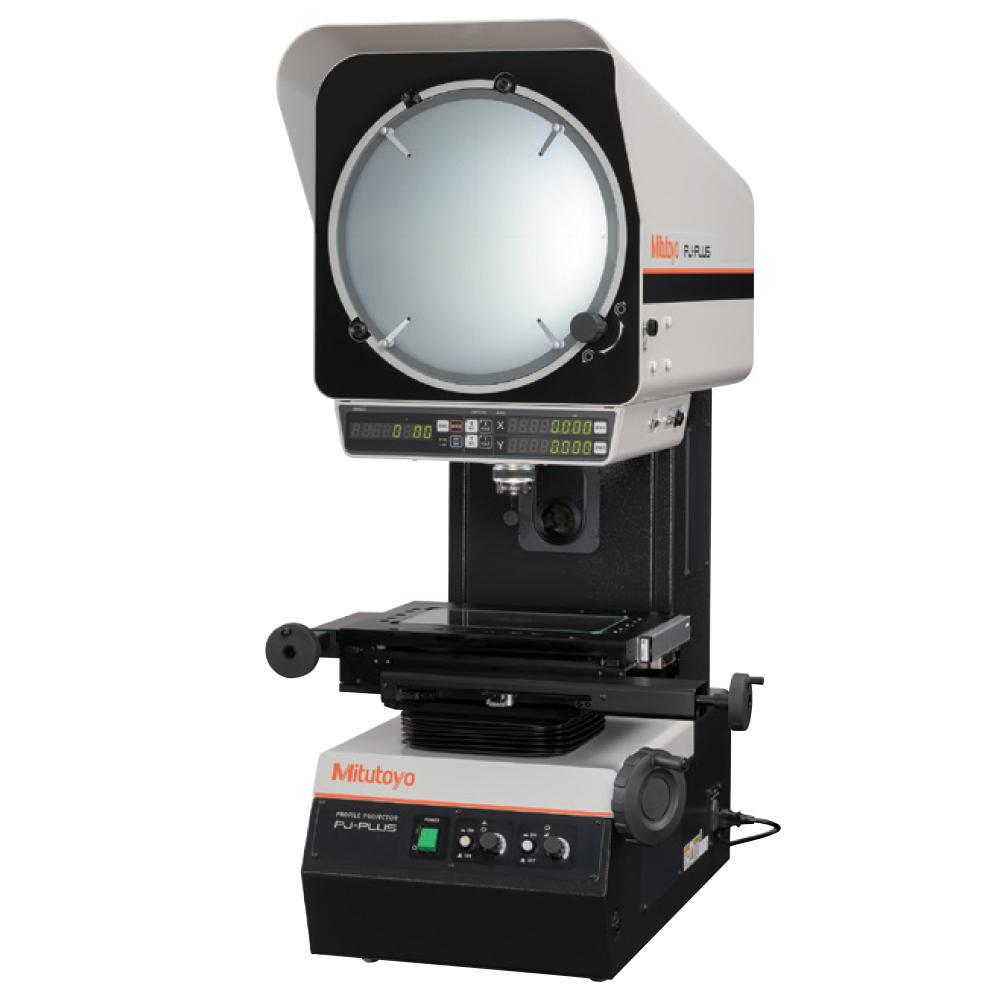

 PJ-PLUS Series

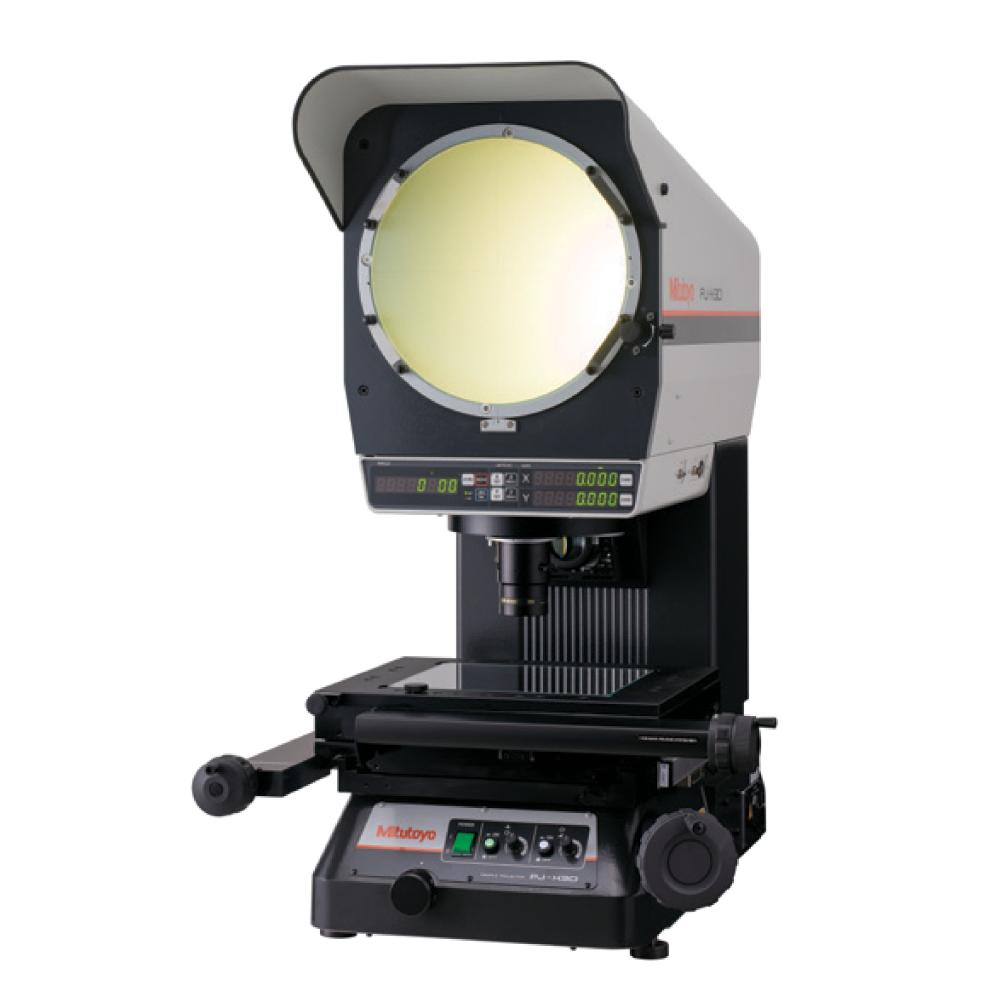

 PJ-H30 Series

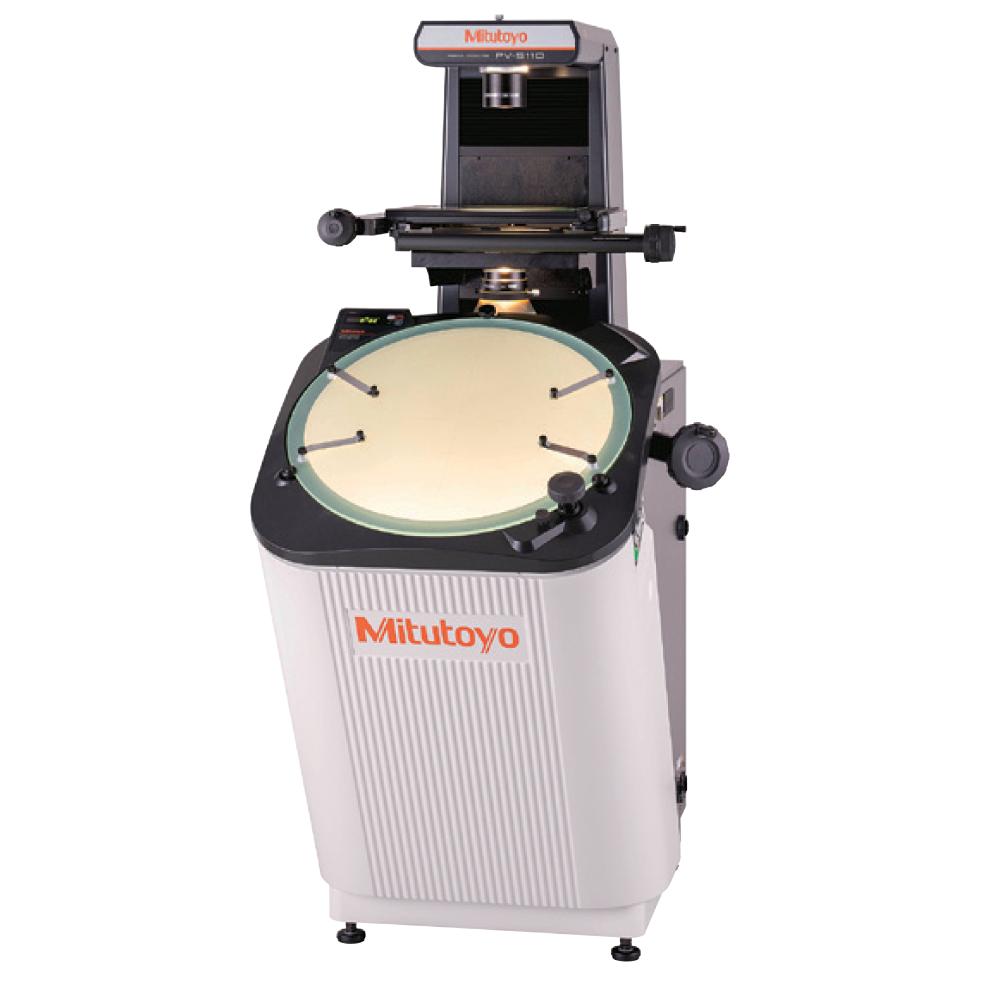

PV-5110

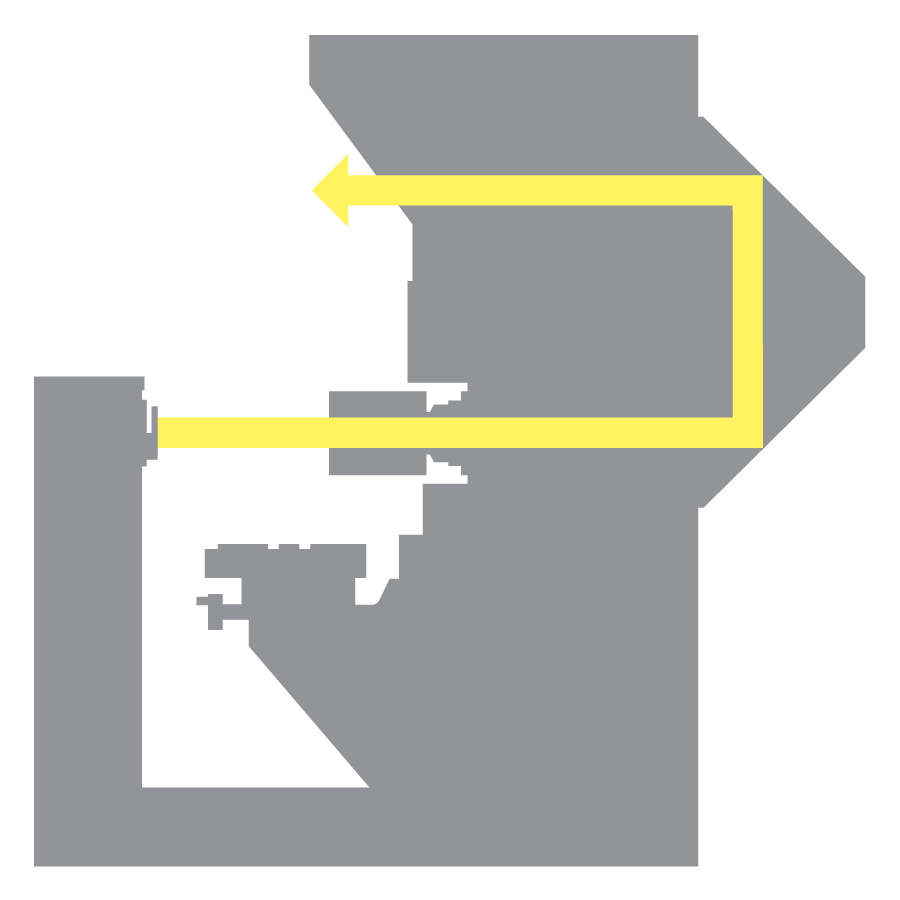

PH Series
Screen diameter 350 mm

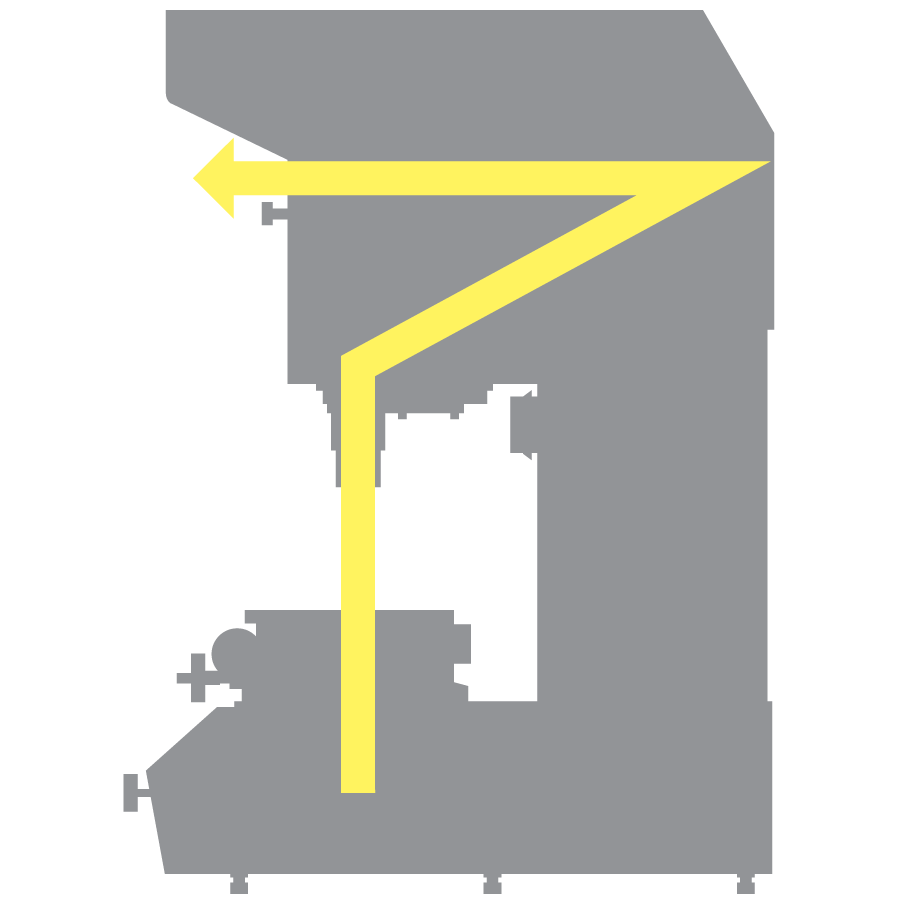

●  Standard model in the edged tool industry. Perfect forobservation and measurement of cutting tools (end mills, cutters, and tipped saws)

● Equipped with a high-rigidity stage boasting maximum load of 45 kg

● With a horizontal beam design makes  loading/unloading the stage very easy

 PJ Series
 Screen diameter 300 mm

● Available in 2 types: PJ-PLUS (white LED light source) and PJ-H30 (high accuracy)

● Broad lineup of stages for handling minute parts to large workpieces

● Controls centered at the front for  better operability

PV Series
Screen diameter 500 mm

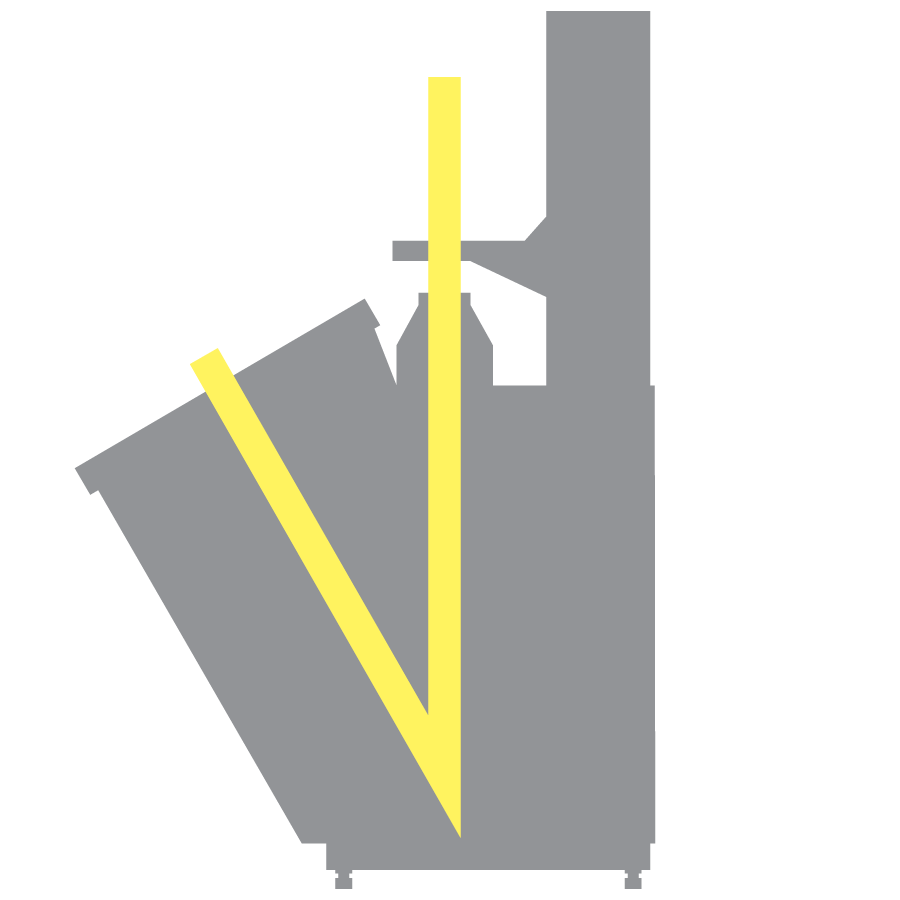

●  Equipped with a large forward-tilted screen

● Perfect for comparative measurements  with enlarged drawings and tracing of projected images

● Recommended for precision and minute parts such as watch and electronic components

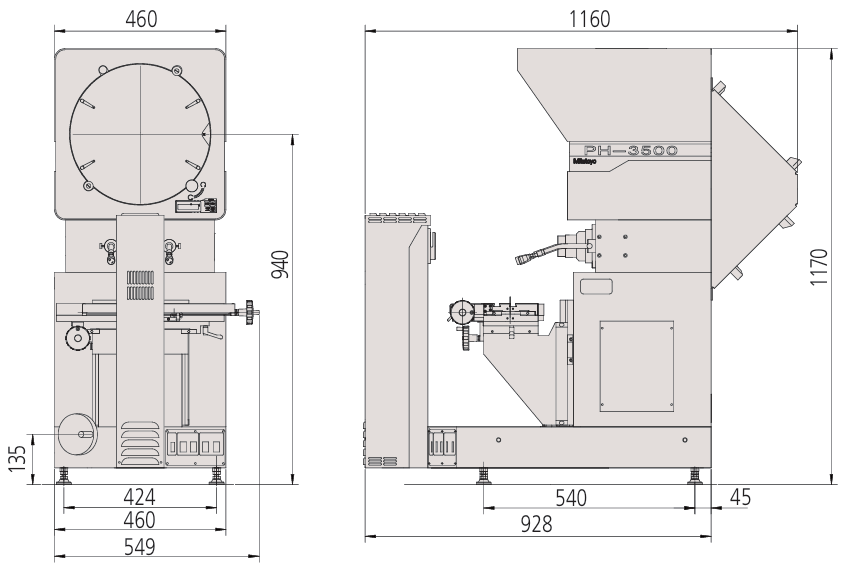

PH-3515F

Note :  To mount the optional counter (KA-212) and counter stand, approximately  300 mm space is required on the right-hand side of the main unit.

Includes Built-In Twin Fiber Optics to assist with the measure of surface features/defects.

Flexible housing allows the lighting condition  o be easily manipulated for a users ideal lighting situation

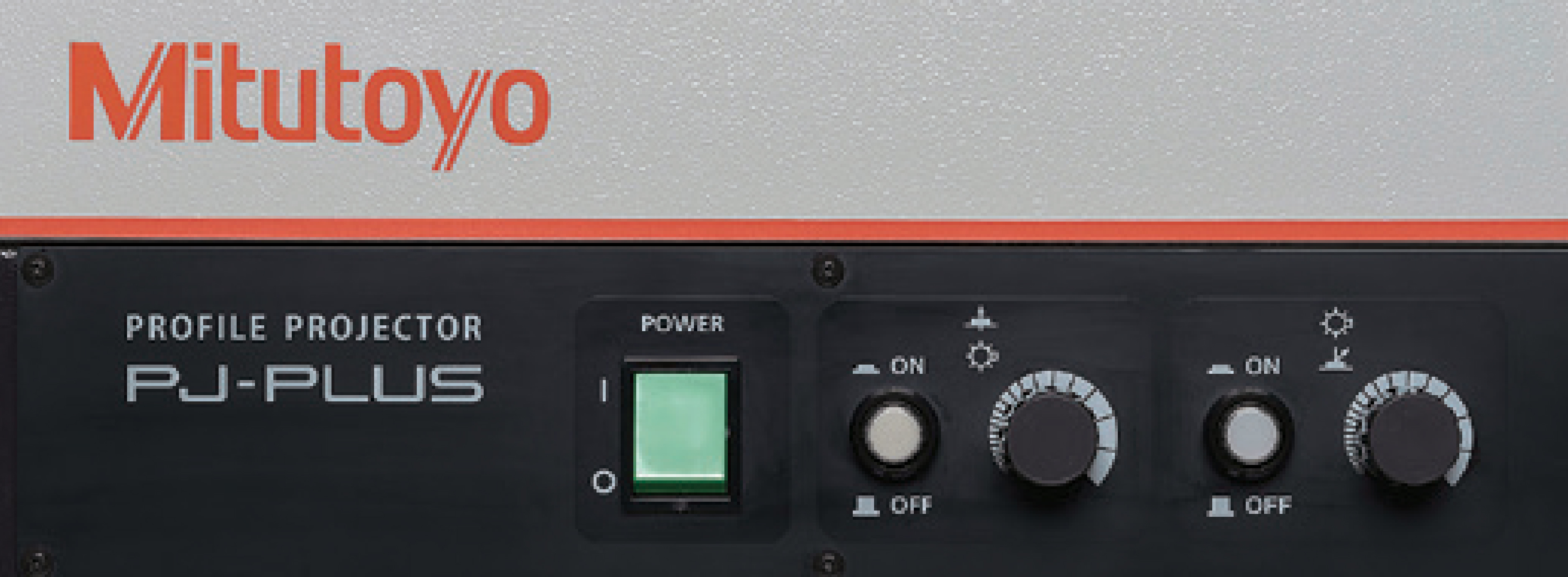

PJ-PLUS

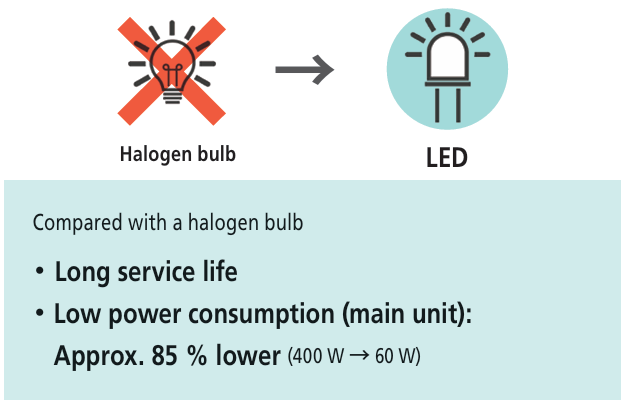

 Thanks to the LED light source, no worries over lamp burnout

Thanks to the fan-less system, it is much harder for oil mist and dust to enter into the main unit

 Stepless illumination adjustment

The conventional 2-step illumination adjustment has been changed to stepless control so the level of illumination can be precisely set to suit the surface texture and color of the workpiece.

 LED (White)

 No color change in projected image with changes in illumination intensity.

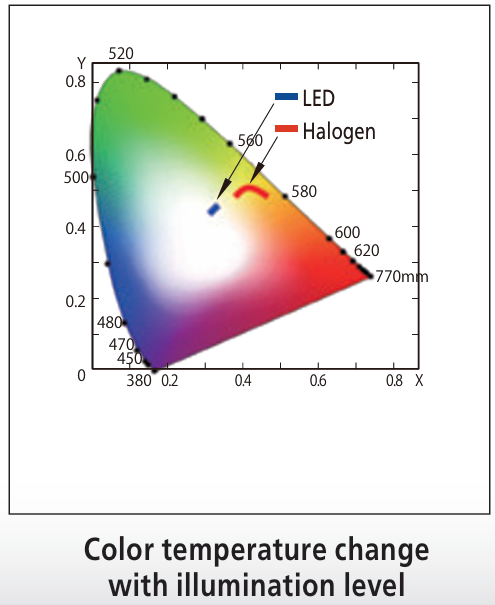

Color temperature varies significantly with the level of halogen illumination but not so much with LED illumination, so the appearance of the image varies a lot less as the LED level is adjusted. Also, the projected image under LED illumination is sharper and easier on the operator’s eyes which contributes to a reduction in fatigue and therefore more efficient inspection and measurement.

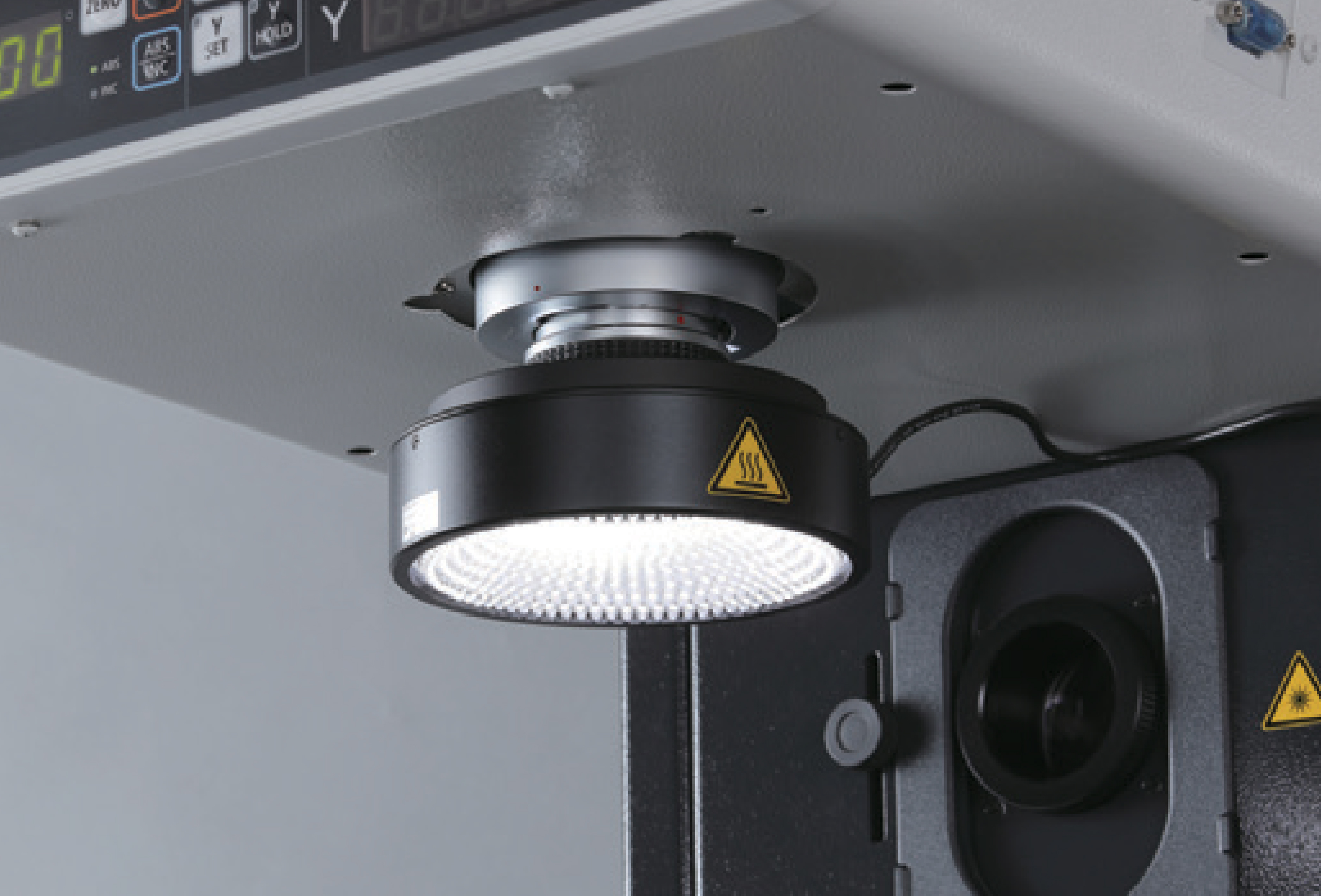

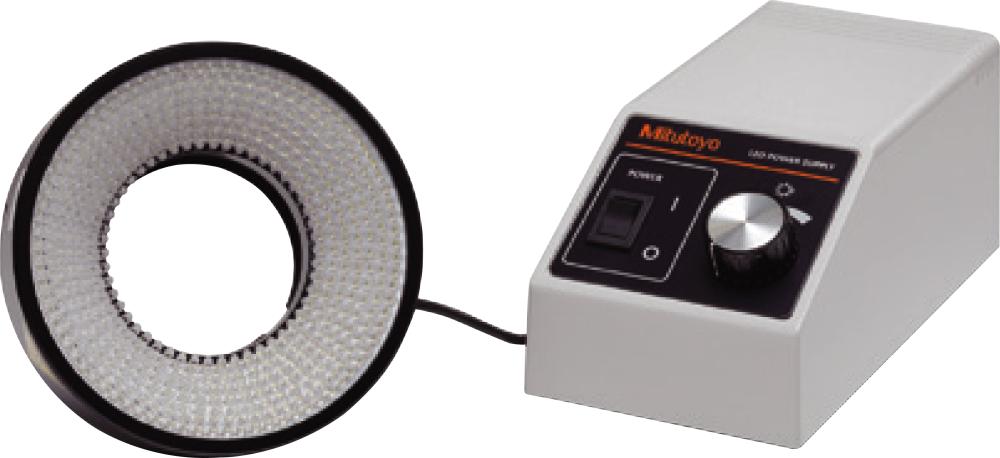

 LED Circular Illuminator for PJ-PLUS

Example of attaching the LED circular illuminator on PJ-PLUS

 LED illumination light can emphasize the contrast of projected workpiece images, stereoscopic and sharp observation.
 Projected image can be observed at high color reproducibility; Low power consumption: 17.4W; and long operating life: 30,000 hours.

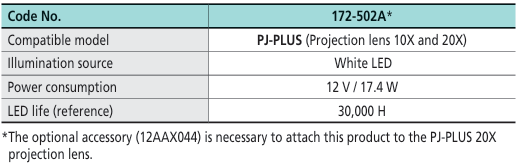

 Specifications

PJ-H30

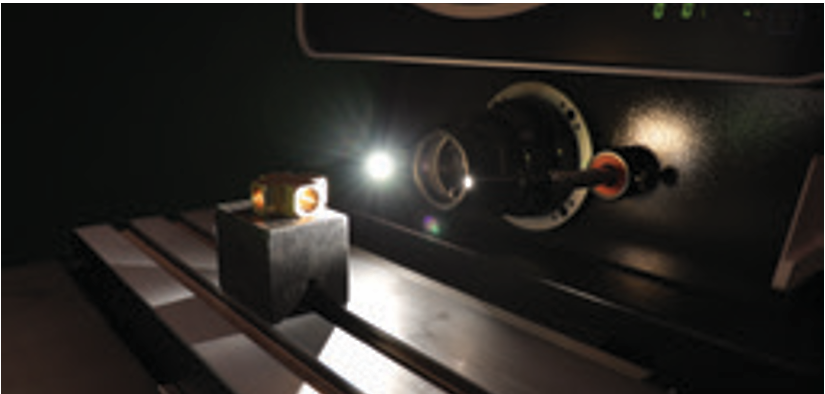

Also equipped with oblique surface illumination with good color reproducibility as standard

The surface illumination comprises vertical illumination, which goes through the projection lens, and oblique illumination, with changeable angle of illumination emitter, as standard. It is effective in  three-dimensional observation with enhanced color reproducibility.

 Easy-to-replace lamp housing design

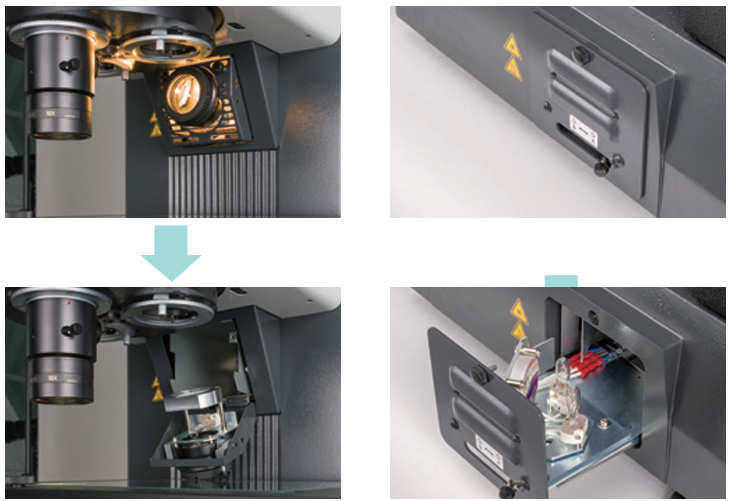

Having a halogen lamp burn out during use can cause a lot of trouble. lmmediately after a lamp burns out, it is too hot to be replaced. The PJ-H30 Series has a slide change mechanism, which allows you to change lamps from outside the unit. Therefore, even if the lamp burns out suddenly, you can continue inspection and measurement with no worries (for transmitted illumination only). The housing can be pulled out just by loosening the screw, so it is very easy to replace the lamp. Furthermore, it is safe to pull out the housing since no electricity is flowing.

 All models equipped with turrets as standard

The turret of the PJ-H30 Series uses low-friction bearings that enable smooth and rapid rotary motion for changing magnification by bringing different projection lenses into the light path. The turret body uses bayonet mounts to aid quick attachment and detachment of lenses.

Quick-release mechanism

 Twist roller system  Quick-release handle

A quick-release handle inside the X/Y handle allows you to switch stage feed between extremely coarse and fine traverse movement. Since the stage is completely free floating, it is very convenient when the distance to the next measuring position is large or when you need to return to the reference position swiftly. Since this mechanism has adopted the twist roller system, there is almost no shock in switching, and the feed is smooth.
 Note: Except for PJ-PLUS Series and PH Series.

Stepless illumination adjustment

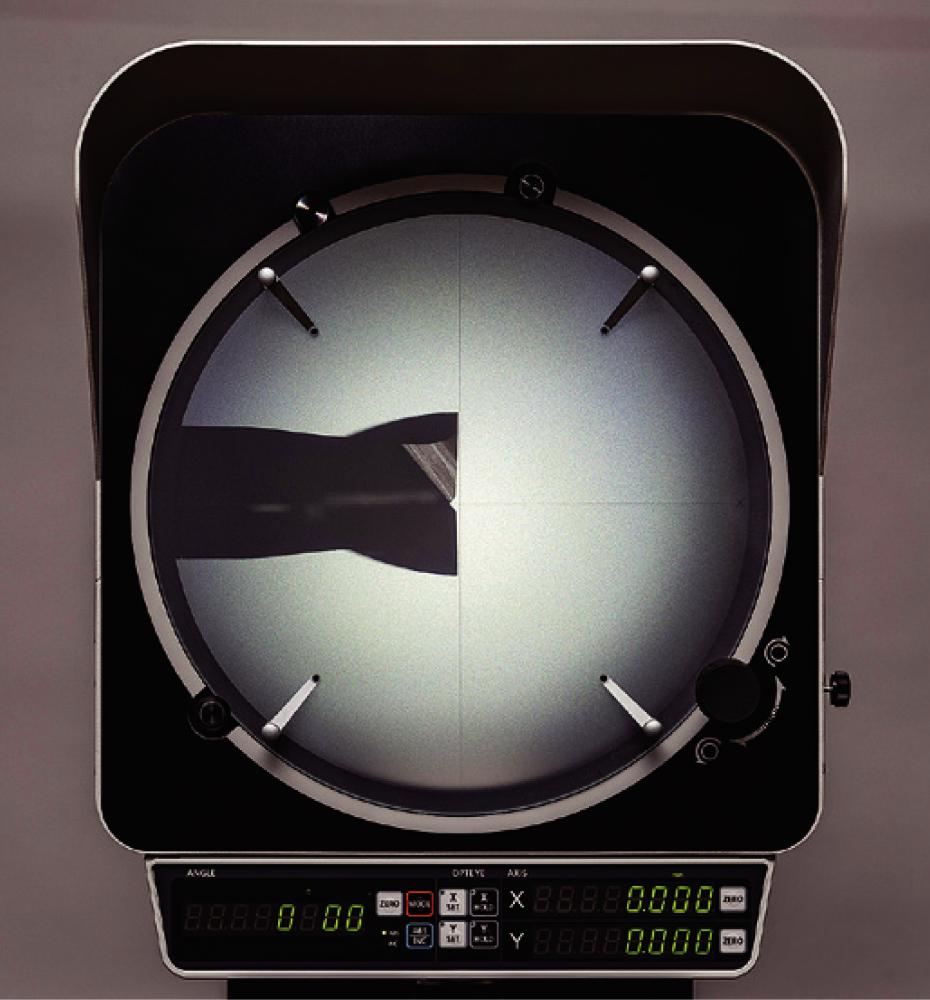

High visibility digital display

Since the digital counter (XY axes and angle) built into all models as standard uses a high-intensity LED and a large-character display, it secures high visibility unaffected by the environment. In addition to zero-setting and direction change, the data output of each counter value adopts the highly versatile RS-232C.

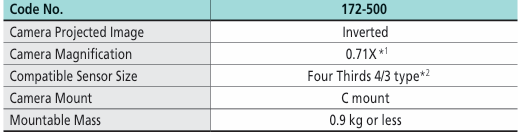

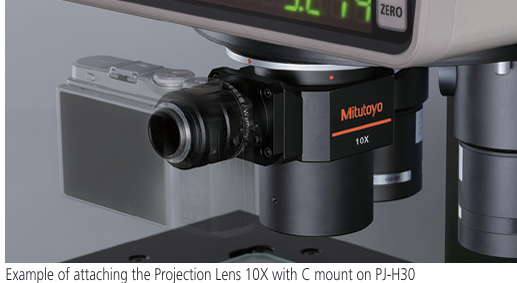

 Projection Lens 10X with C mount

The projection lens is equipped with a C mount, therefore a compatible digital camera can be attached. Retrofitting is possible on a Profile Projector (PJ-H). A workpiece can be observed on the large-size projection screen, and the color image can be simultaneously saved on the camera and observed on the monitor.

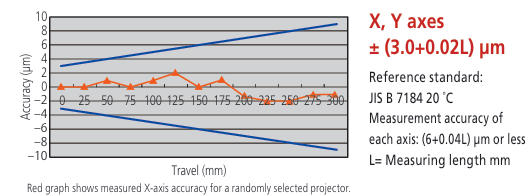

Specifications

 *1  The magnification accuracy of the camera is not guaranteed.
 *2   Vignetting occurs on the four corners of a camera image under the contour illumination.
 Note 1: Refer to page 10 for operation distance.
 Note 2: The magnification to projection Screen is 10X.

 LED Circular Illuminator for PJ-H30

LED illumination light can emphasize the contrast of projected workpiece images, providing stereoscopic and sharp observations.
Projected image can be observed with high color reproducibility, which is never realized by the existing halogen-type surface illumination.
Low power consumption: 17.4W; and long operating life: 30,000 hours.

Specifications

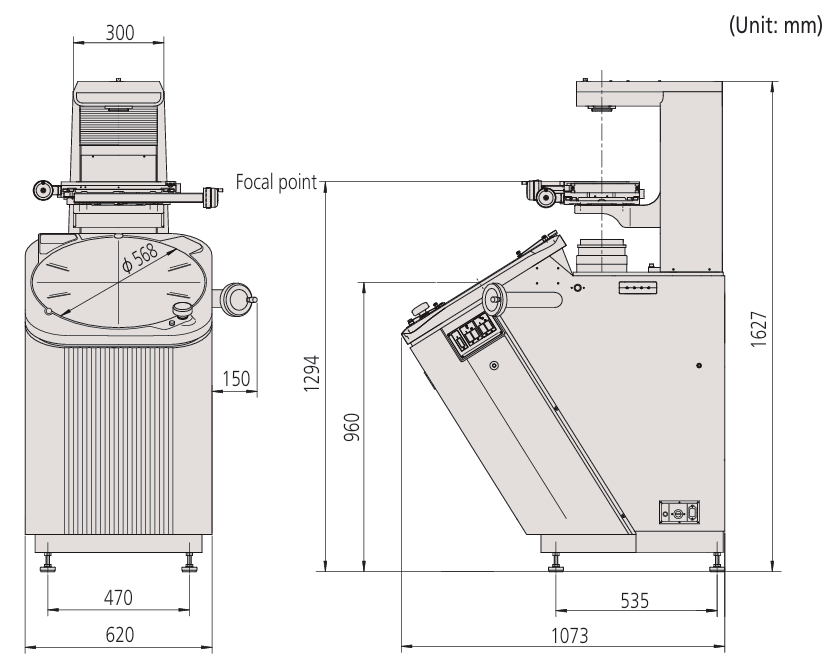

PV-5110
